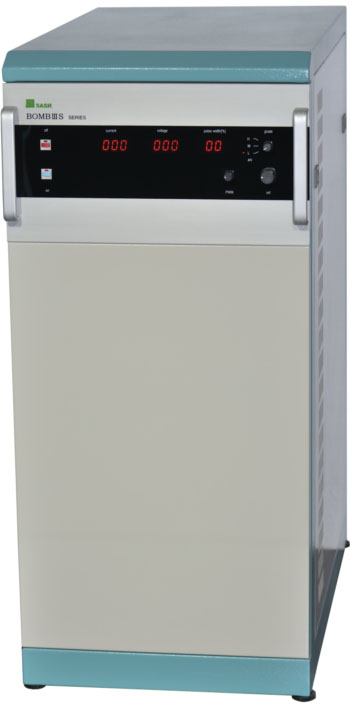

Zunhua Sash BOMB series Bias power supply
Zunhua Sash BOMB series Bias power supply
Product name : Zunhua Sash BOMB series Bias power supply
Item :
Details :
 Bomb-IIIS series of Bias power supply works in high frequency conversion mode of Level 2，unipolar pulse output .Power supply voltage is adjusted by changing the voltage of the power supply of high frequency transformation circuit to realize, adjustable voltage circuit with1% stable rate. High frequency transform circuit generates10-90% width adjustable pulse voltage. Because the output voltage of the power supply and pulse width adjusted independently, in the process to meet the desired voltage at the same time, by changing the pulse width to control the workpiece temperature rise. It is used for various types of coated tools and decorative coating.

Power range

10-80KW

Input power

AC380V  three phase four wire system AC50-60HZ + 10%

Output mode

pulse

Output voltage

0-180V 0-500V 0-1000V

Pulse frequency

40KHZ

Pulse percentage

10-90% continuous adjustment

The stability of the output voltage ratio



Pre regulator,

Load voltage10%

Cooling mode

10-40KW  air cooling

40-80KW  water cooling

The use of the environment

Ambient temperature : 0-40C

Ambient humidity : Relative humidity ≤ 85%

Clean air，No dust，Non corrosive flammable gas，Good ventilation

Cooling water

Clean，does not contain minerals and

other soluble substances

Water temperature : 20-30℃

Pressure :  0.15 + 0.05Mpa
